POWER: 300 to 12,500 W
MAX INLET TEMP: 250º F
MAX EXHAUST: 932º to 1,300º F
PRESSURE: 120 PSIG
Build Your Own Get A Quote

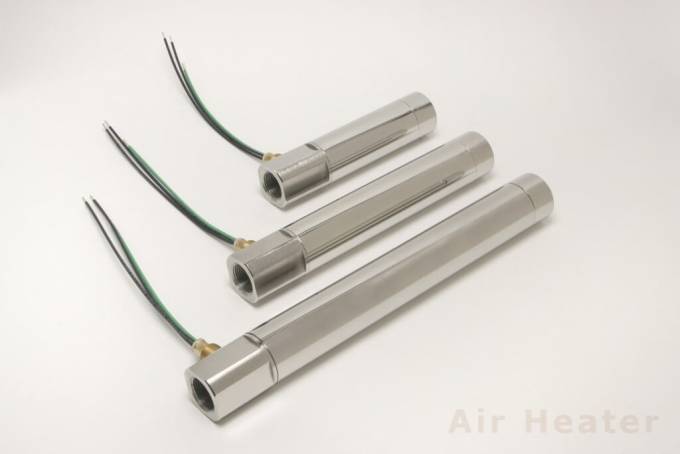

Heat Torch™Made in the USA

Build Your Own Get A Quote

For over two decades, Tutco-Farnam has been at the forefront of manufacturing high-quality inline heaters, delivering tens of thousands of custom-built devices for some of the world’s largest companies, including many in the Fortune 1000. Drawing on this wealth of experience and responding to growing demand, we developed the Heat Torch™ family of process heaters. These innovative heaters combine the best of standardization and customization, offering modular designs that can be tailored to meet unique application needs.

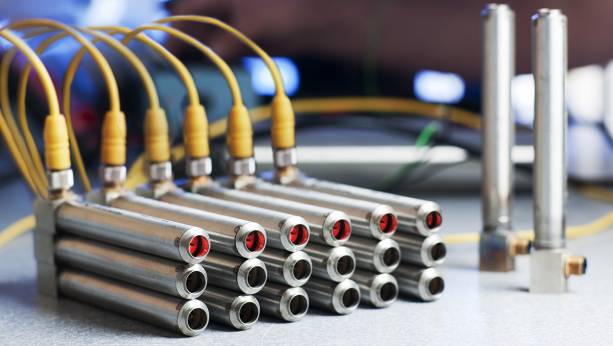

Farnam Heat Torch™ inline air heaters are ideal for rapidly heating compressed air or any non-combustible gas. Industrial strength open coil heating elements provide efficient heat transfer through direct contact with high-pressure airflow. Rapid heater response time enables precise output temperature control when these heaters are paired with off the shelf sensors and controllers. Robust design, high-quality materials, and workmanship provide long life and performance margin. We provide pressure testing for any of our Heat Torch™ products as an add-on service.

  • {page_display_title} image
  • {page_display_title} image
Heat Torch™ 030 View Product
Max Watt 300 W
Max Inlet 250 °F
Max Exhaust 932 °F
Min SCFM 0.3
Max SCFM 1
PSIG 120
Heat Torch™ 050 - Ceramic View Product
Max Watt 600 W
Max Inlet 250 °F
Max Exhaust 1300 °F
Min SCFM 1
Max SCFM 10
PSIG 120
Heat Torch™ 050 - Mica View Product
Max Watt 600 W
Max Inlet 250 °F
Max Exhaust 932 °F
Min SCFM 1
Max SCFM 10
PSIG 120
Heat Torch™ 075 - Ceramic View Product
Max Watt 1000 W
Max Inlet 250 °F
Max Exhaust 1300 °F
Min SCFM 1.3
Max SCFM 25
PSIG 120
Heat Torch™ 075 - Mica View Product
Max Watt 1000 W
Max Inlet 250 °F
Max Exhaust 932 °F
Min SCFM 1.3
Max SCFM 25
PSIG 120
Heat Torch™ 150 View Product
Max Watt 5000 W
Max Inlet 250 °F
Max Exhaust 1300 °F
Min SCFM 4.8
Max SCFM 70
PSIG 120
Heat Torch™ 200 View Product
Max Watt 12500 W
Max Inlet 250 °F
Max Exhaust 1300 °F
Min SCFM 9.6
Max SCFM 100
PSIG 120

Build Your Own And Get A Quote Build Your Own And Get A Quote

New! You can now configure multiple builds and send them all in the same quote request. Use the "SAVE" button below to save a build.

The builder below will allow you to select options for a Heat Torch compressed air heater. If you are uncertain, contact us directly, use our Determine Your Air Heater tool, or simply include your questions with the configurations you make with this tool.

You have 0 saved builds

Label Product Build #
Check the saved builds you would like a quote on then click the button.
MY BUILD#:

Series Designation

  • Heat Torch™ 030, Mica
  • Heat Torch™ 050, Ceramic
  • Heat Torch™ 050, Mica
  • Heat Torch™ 075
  • Heat Torch™ 075. Mica
  • Heat Torch™ 150
  • Heat Torch™ 200

Wattage

  • 50
  • 100
  • 150
  • 200
  • 250
  • 300
  • 350
  • 400
  • 450
  • 500
  • 600
  • 700
  • 800
  • 900
  • 1000
  • 1500
  • 2000
  • 2250
  • 2500
  • 3000
  • 3500
  • 4000
  • 4250
  • 4500
  • 5000
  • 5500
  • 6000
  • 6500
  • 7000
  • 7500
  • 8000
  • 8500
  • 9000
  • 9500
  • 10000
  • 10500
  • 11000
  • 11500
  • 12000
  • 12500

Voltage

  • 100
  • 120
  • 200
  • 208
  • 240
  • 380
  • 400
  • 415
  • 480
  • 575

Phase

  • single
  • three

Inlet Fitting

  • Counterbore 1/2" female
  • 1/8" NPT female
  • 1/4" NPT female
  • 3/8" NPT female
  • 1/2" NPT female
  • 10-32 UNF
  • 1" NPT female
  • M6 Thread
  • R1/8 = 1/8-28 BSPT female
  • R1/4 = 1/4-19 BSPT female
  • R1/2 = 1/2-14 BSPT female
  • R1 = 1-11 BSPT female

Exhaust Fitting

  • no fitting
  • 3/4" to 1/2" reducing adapter
  • 1/8" NPT female
  • 1/4" NPT female
  • 3/8" NPT female
  • 1/2" NPT female
  • 1" NPT female
  • 1 1/4" NPT female
  • R1/4 = 1/4-19 BSPT female
  • R3/8 = 3/8-19 BSPT female
  • R1 = 1-11 BSPT female thread
  • R1 1/4 = 1 1/4-11 BSPT female

Thermocouple Fitting

  • No Fitting
  • 1 t/c fitting with t/c
  • 2 t/c fittings with 2 t/c
  • 1 t/c fitting without t/c
  • 2 t/c fittings without t/c

Controller

  • Call for Control Option

Series Designation

  • Heat Torch™ 030, Mica
  • Heat Torch™ 050, Ceramic
  • Heat Torch™ 050, Mica
  • Heat Torch™ 075
  • Heat Torch™ 075. Mica
  • Heat Torch™ 150
  • Heat Torch™ 200

Wattage

  • 50
  • 100
  • 150
  • 200
  • 250
  • 300
  • 350
  • 400
  • 450
  • 500
  • 600
  • 700
  • 800
  • 900
  • 1000
  • 1500
  • 2000
  • 2250
  • 2500
  • 3000
  • 3500
  • 4000
  • 4250
  • 4500
  • 5000
  • 5500
  • 6000
  • 6500
  • 7000
  • 7500
  • 8000
  • 8500
  • 9000
  • 9500
  • 10000
  • 10500
  • 11000
  • 11500
  • 12000
  • 12500

Voltage

  • 100
  • 120
  • 200
  • 208
  • 240
  • 380
  • 400
  • 415
  • 480
  • 575

Phase

  • single
  • three

Inlet Fitting

  • Counterbore 1/2" female
  • 1/8" NPT female
  • 1/4" NPT female
  • 3/8" NPT female
  • 1/2" NPT female
  • 10-32 UNF
  • 1" NPT female
  • M6 Thread
  • R1/8 = 1/8-28 BSPT female
  • R1/4 = 1/4-19 BSPT female
  • R1/2 = 1/2-14 BSPT female
  • R1 = 1-11 BSPT female

Exhaust Fitting

  • no fitting
  • 3/4" to 1/2" reducing adapter
  • 1/8" NPT female
  • 1/4" NPT female
  • 3/8" NPT female
  • 1/2" NPT female
  • 1" NPT female
  • 1 1/4" NPT female
  • R1/4 = 1/4-19 BSPT female
  • R3/8 = 3/8-19 BSPT female
  • R1 = 1-11 BSPT female thread
  • R1 1/4 = 1 1/4-11 BSPT female

Thermocouple Fitting

  • No Fitting
  • 1 t/c fitting with t/c
  • 2 t/c fittings with 2 t/c
  • 1 t/c fitting without t/c
  • 2 t/c fittings without t/c

Controller

  • Call for Control Option
