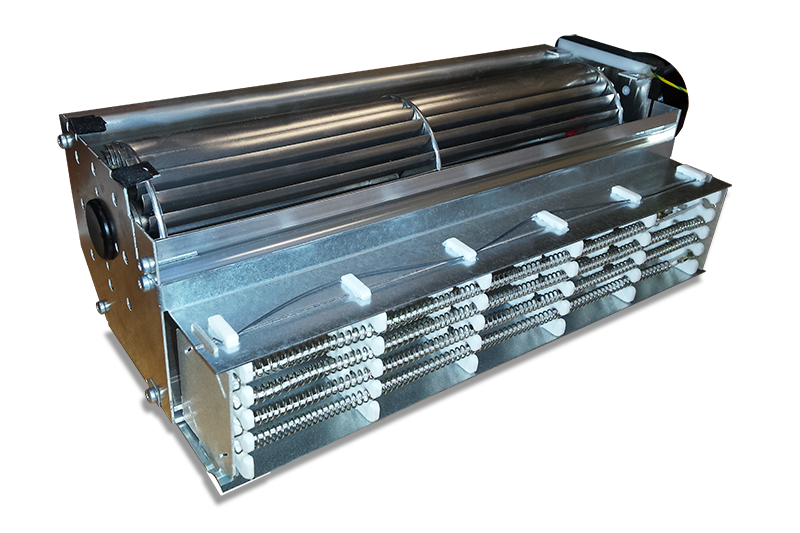

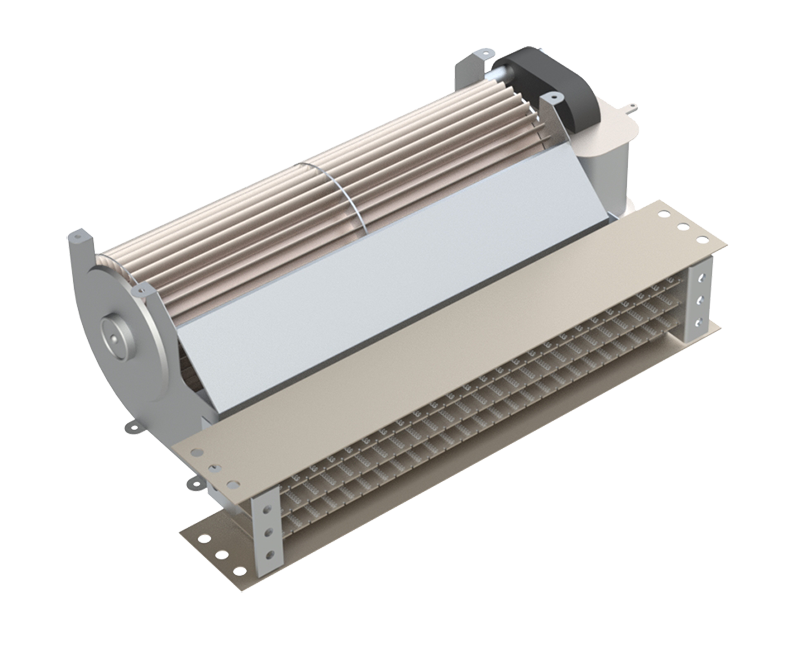

Crossflow Blower Heater
Designed for maximum versatility, Crossflow Blower Heaters (CB Series) feature multi-purpose mounting brackets that attach directly to the exhaust of a crossflow blower, eliminating the need for additional accessories. Additional mounting holes allow the heater to function independently as a stand-alone duct heater. Single and dual wattage, and/or dual voltage combinations are available. Integrated thermal fuses and/or hi-limit thermostats are available to provide over-temperature protection. Crossflow Blower Heaters are designed to meet your specific heating requirements. We match size, wattage, and voltage to meet your specifications for optimal system performance. Crossflow Blower Heaters are available in 5”, 7”, 10”, 12” and 15" standard lengths. Heaters are UL recognized components under UL file number E154979. These products are also commonly called:
- Crossflow or Cross-flow Fan Heaters
- Squirrel Cage Blower Heaters
- Tangential Blower Heaters
- Squirrel Cage Fan Heaters
- Tangential Fan Heaters
| LENGTH | MAX WATT | MAX INLET | MAX EXHAUST |
| 5.55" | 1500º F | 290º F | 662ºF |
| 7.91" | 2250ºF | 290ºF | 662ºF |
| 10.32" | 3500ºF | 290ºF | 662ºF |
| 12.72" | 4500ºF | 290ºF | 662ºF |
| 14.98" | 5000ºF | 290ºF | 662ºF |
Other things you need to specify with request include:
- Termination M - Standard. Stripped leads. Contact factory for options.
- Lead Length Specify length required. Standard lead length is 6”. Ex. 12=12” long leads.
- Mounting Brackets D - Standard
Critical Note!
The current rating specifications for the over-temperature protection devices limits the 120V versions to a maximum 1700 watts , 208V versions to 1950 watts, and 240V versions to a maximum 2250 watts. Do not specify an over-temperature cutout or thermal cutoff if higher wattages are required.
THERMOSTAT AND FUSE OPTIONS | THERMOSTAT | OVERTEMPERATURE CUTOUT |
| X | No Thermostat |
| 1A | 65°C (149°F) |
| 1B | 70°C (158°F) |
| 1C | 80°C (176°F) |
| 1D | 85°C (185°F) |
| 1E | 90°C (194°F) |
| 1F | 100°C (212°F) |
| 1G | 120°C (248°F) |
| 1H | 130°C (266°F) |
| 1J | 150°C (302°F) |
| THERMAL FUSE | TEMPERATURE |
| X | No Fuse |
| D | 93°C (199°F) |
| F | 104°C (219°F) |
| H | 117°C (243°F) |
| K | 128°C (262°F) |
| L | 152°C (306°F) |
| N | 192°C (377°F) |
| R | 229°C (444°F) |
