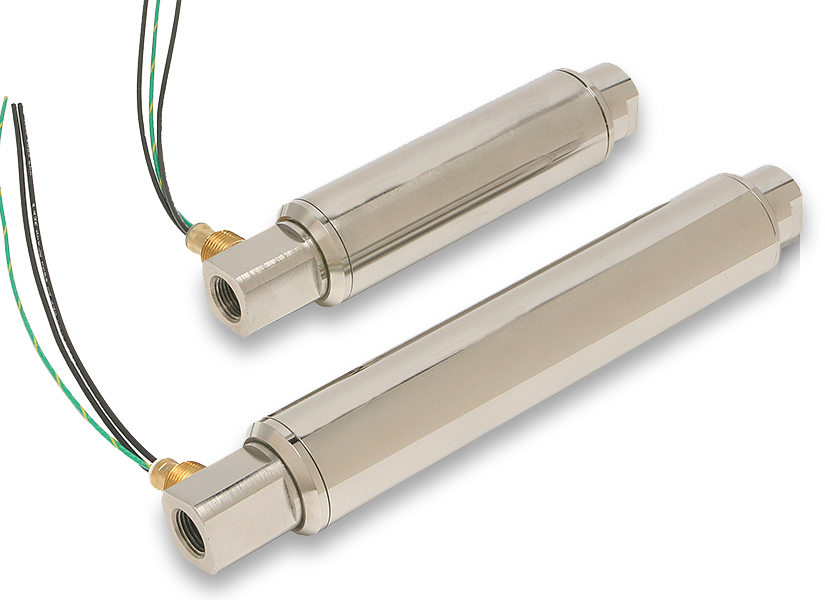

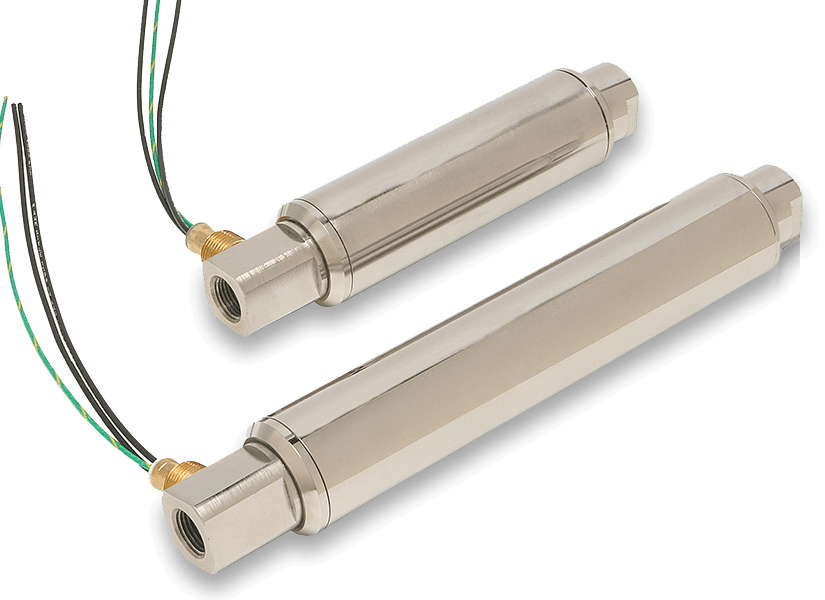

Heat Torch™ 150

The Heat Torch™ 150 heating element is contained in a 1 1/2” diameter stainless steel pipe. The Heat Torch™ 150 comes in two sizes. The 4.7” long heater body accommodates ratings from 500 to 2500 watts (with standard power increments of 250 watts). The 8.3” long heater body handles ratings of 2750 to 5000 watts (with standard power increments of 500 watts). Heat Torch™ 150 has allowable compressed air flow ranging from 4.8 to 70 SCFM. Maximum air input temperature is 250°F (121°C) with 1300°F (704°C) maximum output temperature. Standard inlet fitting is 1/2” NPT female. Standard outlet fittings include 1/4”, 1/2”, and 1” female NPT fittings or no exhaust fitting.
Heat Torch™ 150 is designed for high reliability, long life, and substantial air flow. Applications include staking, curing, drying, heat-shrinking, sterilization, adhesive activation, air scrubbing, and air knives. Ideal for heating any non-combustible gas.

MAX WATT | MAX INLET | MAX EXHAUST | MIN SCFM | MAX SCFM | PSIG* |
5000 W | 250º F | 1300º F | 4.8 | 70 | 120 |
Specifications
Mounting.................................................Horizontal / Vertical
Leads.........................................................14 Gauge, 12" long
Heater Body.....................................................Stainless Steel
Heater Fittings.................................................Stainless Steel
Wattage and Voltage Options
120V, single phase, 0.5kW-2.5kW
240V, single phase, 0.5kW-5.0kW
240V, three phase, 2.25kW-5.0kW
480V, three phase. 5.0kW
Applications
- Staking
- Curing
- Adhesive Activation
- Drying
- Heat Shrinking
- Air Scrubbing
- Air Knives
Options
- Thermocouple Fitting
- Thermocouple
- Flexible Conduit

Resources
Additional Information

Exhaust Fitting. No Fitting

Inlet Fitting. M6 Thread

Inlet Fitting. 10-32 UNF
AIRFLOW (SCFM) | 500W-2500W PRESSURE DROP (PSIG) | 2750W-5000W PRESSURE DROP (PSIG) |
5 | 0.3 | 0.6 |
10 | 0.6 | 1.2 |
20 | 1.1 | 2.2 |
30 | 2.5 | 5.0 |
40 | 4.4 | 8.8 |
50 | 6.9 | 14 |
60 | 9.9 | 20 |
70 | 13 | 27 |

Exhaust Fitting
1/2" NPT female

Exhaust Fitting
R1=1-11 BSPT female thread

Exhaust Fitting
1" NPT female

Exhaust Fitting
1/4" NPT female

Exhaust Fitting
No Fitting

Inlet Fitting
1/2" NPT female

Inlet Fitting
R1=1-11 BSPT female

Inlet Fitting
R1/2=1/2-14 BSPT female

Thermocouple Fitting
2 t/c fittings with 2 t/c
