POWER: 500 to 12,500 W
MAX INLET TEMP: 250º F
MAX EXHAUST: 1,300º F
PRESSURE: 120 PSIG
Build Your Own Get A Quote

Cool Touch™Made in the USA

Build Your Own Get A Quote

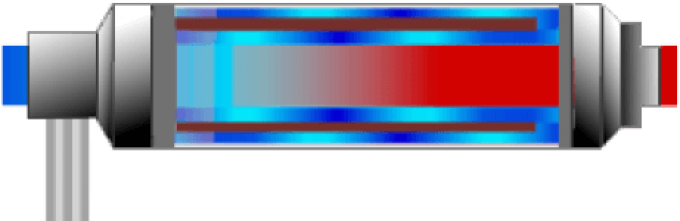

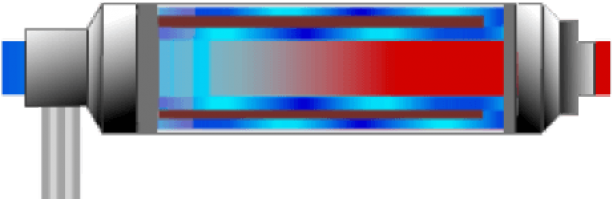

Our highly efficient Cool Touch™ heat torch option minimizes the skin temperature of the heater and helps protect people and products from hot surfaces. This very efficient design reduces heat losses.

The large thermal storage capacity is particularly useful if you have an application requiring intermittent use and rapid response. This Cool Touch™ option is available for a variety of our Heat Torch sizes. We provide pressure testing for any of our Cool Touch™ products as an add-on service.

  • Cool Touch
  • Cool touch
  • Cool touch
  • Cool touch
Cool Touch™ 050 View Product
Max Watt 500 W
Max Inlet 250 °F
Max Exhaust 1300 °F
Min SCFM 1
Max SCFM 7.5
PSIG 120
Cool Touch™ 150 View Product
Max Watt 5000 W
Max Inlet 250 °F
Max Exhaust 1300 °F
Min SCFM 4.8
Max SCFM 70
PSIG 120
Cool Touch™ 200 View Product
Max Watt 12500 W
Max Inlet 250 °F
Max Exhaust 1300 °F
Min SCFM 9.6
Max SCFM 100
PSIG 120

Build Your Own And Get A Quote Build Your Own And Get A Quote

New! You can now configure multiple builds and send them all in the same quote request. Use the "SAVE" button below to save a build.

The builder below will allow you to select options for a Cool Touch™ Heat Torch. If you are uncertain if a Cool Touch™ Heat Torch is the right solution for your needs, please learn about our other product offerings on our Standard Products page.

You have 0 saved builds

Label Product Build #
Check the saved builds you would like a quote on then click the button.
MY BUILD#:

Series Designation

  • Cool Touch Heat Torch™ 050
  • Cool Touch Heat Torch™ 150
  • Cool Touch Heat Torch™ 200

Wattage

  • 100
  • 150
  • 200
  • 250
  • 300
  • 350
  • 400
  • 450
  • 500
  • 1000
  • 1500
  • 2000
  • 2250
  • 2500
  • 3000
  • 3500
  • 4000
  • 4250
  • 4500
  • 5000
  • 5500
  • 6000
  • 6500
  • 7000
  • 7500
  • 8000
  • 8500
  • 9000
  • 9500
  • 10000
  • 10500
  • 11000
  • 11500
  • 12000
  • 12500

Voltage

  • 100
  • 120
  • 200
  • 208
  • 240
  • 380
  • 400
  • 415
  • 480
  • 575

Phase

  • single
  • three

Inlet Fitting

  • Counterbored 1/2"
  • 1/8" NPT female
  • 1/2" NPT female
  • 1" NPT female
  • R1/8 = 1/8-28 BSPT female
  • R1/2 = 1/2-14 BSPT female
  • R1 = 1-11 BSPT female

Exhaust Fitting

  • no fitting
  • 1/4" NPT female
  • 1/2" NPT female
  • 1" NPT female
  • 1 1/4 NPT female
  • R1/4 = 1/4-19 BSPT female
  • R1 = 1-11 BSPT female
  • R1 1/4 = 1 1/4-11 BSPT female

Thermocouple Fitting

  • no t/c fitting
  • fitting with 1 t/c
  • fitting with 2 t/c
  • 1 t/c fitting without t/c
  • 2 t/c fittings without t/c

Controller

  • Call for Control Options

Series Designation

  • Cool Touch Heat Torch™ 050
  • Cool Touch Heat Torch™ 150
  • Cool Touch Heat Torch™ 200

Wattage

  • 100
  • 150
  • 200
  • 250
  • 300
  • 350
  • 400
  • 450
  • 500
  • 1000
  • 1500
  • 2000
  • 2250
  • 2500
  • 3000
  • 3500
  • 4000
  • 4250
  • 4500
  • 5000
  • 5500
  • 6000
  • 6500
  • 7000
  • 7500
  • 8000
  • 8500
  • 9000
  • 9500
  • 10000
  • 10500
  • 11000
  • 11500
  • 12000
  • 12500

Voltage

  • 100
  • 120
  • 200
  • 208
  • 240
  • 380
  • 400
  • 415
  • 480
  • 575

Phase

  • single
  • three

Inlet Fitting

  • Counterbored 1/2"
  • 1/8" NPT female
  • 1/2" NPT female
  • 1" NPT female
  • R1/8 = 1/8-28 BSPT female
  • R1/2 = 1/2-14 BSPT female
  • R1 = 1-11 BSPT female

Exhaust Fitting

  • no fitting
  • 1/4" NPT female
  • 1/2" NPT female
  • 1" NPT female
  • 1 1/4 NPT female
  • R1/4 = 1/4-19 BSPT female
  • R1 = 1-11 BSPT female
  • R1 1/4 = 1 1/4-11 BSPT female

Thermocouple Fitting

  • no t/c fitting
  • fitting with 1 t/c
  • fitting with 2 t/c
  • 1 t/c fitting without t/c
  • 2 t/c fittings without t/c

Controller

  • Call for Control Options

? Not sure if this is the right solution for you? Use our Determine Your Heater tool to see which heaters meet your needs.
