Process Air Heaters

Tutco Farnam specifically developed a line of low-flow, high-pressure air heaters designed to be used with compressed air or shop air lines at your facility. Heat Torch™ inline air heaters are ideal for rapidly heating compressed air thanks to industrial strength open-coil heating elements. This design provides efficient heat transfer through direct contact with high-pressure airflow.

Rapid heater response time enables precise output temperature control when paired with a Tutco Farnam custom control panel. This combination provides synergy in the system allowing you to maintain tight temperature tolerances and adjust settings with ease. Robust design, high-quality materials, and expert workmanship truly showcases our commitment to excellence and ensures you can count on your heater for years to come.

The Heat Torch™ line of heaters come in a wide range of sizes and wattage levels. OD dimensions from 2” to 0.3,” and power from 12.5kW to 75W can all be outfitted with a number of accessories. The Heat Torch™ 050 and 075 models can contain either mica or ceramic components, with the ceramic models able to withstand higher exhaust temperatures. By sharing your process needs (wattage, voltage, inlet/exhaust fittings, thermocouples, etc.), our team will create a heater that’s adapted to you.

Our highly efficient Cool Touch™ heater option minimizes the skin temperature of the heater and helps protect people and products from hot surfaces. Cool Touch™ heaters use a triple pass coil design, which utilizes internal channels that prevent the heated pressurized air from touching the ID of the heater.  Integrating this type of heater into your workflow gives you the dependability and performance of a Heat Torch™ heater with additional safety benefits for critical applications.

To get the most out of your new heater, we recommend pairing with one of our pre-built or customizable controllers. To read more about our options for controllers, you can read more here.

The large thermal storage capacity is particularly useful if you have an application requiring intermittent use and rapid response. This Cool Touch™ option is available for a variety of our Heat Torch™ sizes.  Pressure testing and other consultations are available by our team upon request.

Below are some specific examples where a Cool Touch™ heater may be beneficial:

• Medical device manufacturing requires clean room environments where equipment will be in close proximity to heat-reactive or other sensitive materials.  A Cool Touch™ heater protects these materials while also keeping workers safe from possible burns.
• Electronic component assembly lines for the production of semiconductors or circuit boards have critical components that can be destroyed if exposed to excess heat.  Cool Touch™ heaters can be installed in these facilities to mitigate this risk.

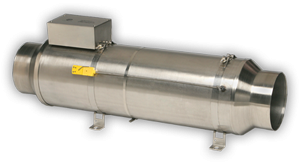

For those looking to heat large volumes of air without the need for high pressures, the Flow Torch™ is a great option. Whether you are using regenerative blower or a fan, the Flow Torch™ can be utilized in systems that are operating under 4psi. You can think of your new Flow Torch™ as a super-charged blow dryer, with internal heating elements intently designed to optimize thermal transfer and prevent cool inlet air from “cheating” its way through the unit. The low-mass open-coil design was engineered for quick and efficient heat-up and cool-down processes. This line of process air heater offers:

• Minimal obstruction to airflow (low pressure drop)
• High air flow volume
• Outlet temperatures up to 900°F
• Compatibility with suitable flexible duct or pipe fittings
• UL recognition under UL file number E365755

Tutco Farnam has developed several graduated sizes of this basic platform, and a variety of customizations can be included to suit your needs. You can read further about our line of control panels and insulated jackets at the bottom of this page.  Our team offers application assistance, pressure drop charts, and/or regenerative blowers for fully integrated system solutions.

New! Flanged Fittings!

Flanged fittings are now available – Click here for more information on fittings for your FT400, FT600 & FT800.

If your heater needs fall between the 4psi offering of the Flow Torch™ and the 500psi offering of the Heat Torch™, the Pressure Torch™ may be your perfect fit. The Pressure Torch™ stands to signify the evolution of the Heat Torch™ line of heaters. This line of heaters is essentially a Heat Torch™ encapsulated inside a pressurized tube, which is optimal for medium pressure applications (up to 150psi). The Pressure Torch™ offers:

• Minimal obstruction to airflow (low pressure drop)
• High volumes of air flow (up to 2000SCFM)
• Max exhaust air temperature of 900°F
• Two thermocouples (preferred) for process and max temp monitoring
• Flange-fitting connections

Offered in a wide range of sizes and voltage/wattage options, the Pressure Torch™ is the ultimate hybrid heater. Similarly to the Heat Torch™, this family of heaters can be fitted with several accessories and can be integrated with our line of exclusively engineered controllers. Our team is here to help with any questions regarding selection, application, and installation.

Watch a quick video on the Pressure Torch™ line of heaters.

Inline duct heaters offered by Tutco Farnam are specifically designed for industrial applications. As you may have guessed, duct heaters are generally installed on the side wall of your system to heat duct air.  Tutco Farnam duct heaters are supplied in a square shape in a variety of sizes, unless a custom size/shape is needed.  Multiple wattage and voltage options are available for purchase.

Tutco Farnumindustrial duct heaters offer:

• Capability to heat large volumes of process air with fast warm-ups and cool-downs thanks to efficient open-coil heating elements
• Low-pressure drops with our open-frame design
• Low static pressures and reduced buildup of excess temperatures allowing you to use smaller, more economic blowers
• Consistent performance and easy installation
• Synchronization between multiple stages with the use of dual controllers

Our duct heaters reach their full potential when paired with one of our custom controllers, especially if more than one stage is to be implemented at your facility.  More information on Tutco Farnam’s duct heaters can be found in the Engineer Talk article by Jerry Sain.
