Heat Torch™ 150
The Heat Torch™ 150 heating element is contained in a 1 1/2” diameter stainless steel pipe.

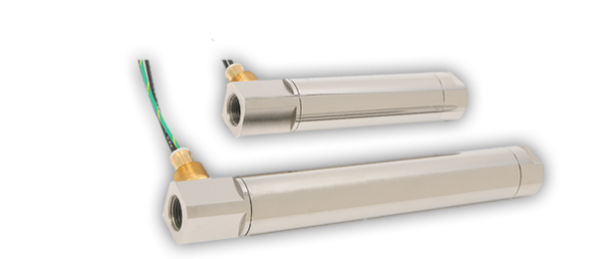

The Heat Torch™ 150 comes in two sizes. The 4.7” long heater body accommodates ratings from 500 to 2500 watts (with standard power increments of 250 watts). The 8.3” long heater body handles ratings of 2750 to 5000 watts (with standard power increments of 500 watts).
Heat Torch™ 150 has allowable compressed air flow ranging from 4.8 to 70 SCFM. Maximum air input temperature is 250°F (121°C) with 1300°F (704°C) maximum output temperature. Standard inlet fitting is 1/2” NPT female. Standard outlet fittings include 1/4”, 1/2”, and 1” female NPT fittings or no exhaust fitting.
Heat Torch™ 150 is designed for high reliability, long life, and substantial air flow. Applications include staking, curing, drying, heat-shrinking, sterilization, adhesive activation, air scrubbing, and air knives. Ideal for heating any non-combustible gas. We provide pressure testing as an add-on service.
| Max Watt | Max Inlet | Max Exhaust | Min SCFM | Max SCFM | PSIG* |
|---|---|---|---|---|---|
| 5000 W | 250 °F | 1300 °F | 4.8 | 70 | 120 |
- MountingHorizontal / Vertical
- Leads14 Gauge, 12" long
- Heater BodyStainless Steel
- Heater FittingsStainless Steel
Applications for the Heat Torch™ 150 include
- Staking
- Curing
- Drying
- Heat Shrinking
- Sterilization
- Adhesive Activation
- Air Scrubbing
- Air Knives
Additional Information
Airflow / Pressure Drop Chart
| Airflow (SCFM) |
500W-2500W Pressure Drop (PSIG) |
2750W-5000W Pressure Drop (PSIG) |
|---|---|---|
| 5 | 0.3 | 0.6 |
| 10 | 0.6 | 1.2 |
| 20 | 1.1 | 2.2 |
| 30 | 2.5 | 5.0 |
| 40 | 4.4 | 8.8 |
| 50 | 6.9 | 14 |
| 60 | 9.9 | 20 |
| 70 | 13 | 27 |
Wattage / Minimum Flow Chart
| Wattage | Minimum Flow Required at Max Power Inlet Air Temperature 72°F (SCFM) |
|---|---|
| 500 | 4.8 |
| 1000 | 4.8 |
| 1500 | 4.8 |
| 2000 | 4.8 |
| 2500 | 6.6 |
| 3000 | 7.9 |
| 3500 | 9.3 |
| 4000 | 10.8 |
| 5000 | 12.4 |
