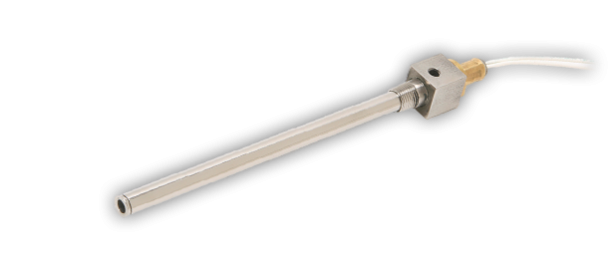

Heat Torch™ 030
The Heat Torch™ 030 is ideal for concentrating hot air (and other non-combustible gas) streams into small areas with negligible heat losses. This 0.313” diameter air heater is our smallest standard Heat Torch™ delivering greater precision with a focused compressed air stream. It can be mounted vertically or horizontally. (Horizontal mounting is preferred at high temperatures.) Heat Torch™ 030 operates best with air flow in the range of 0.3 SCFM to 1.0 SCFM and power options up to 300 watts. The Maximum recommended exhaust temperature is 900°F (482°C). UL Listed.
| MAX WATT | MAX INLET | MAX EXHAUST | MIN SCFM | MAX SCFM | PSIG* |
| 300 W | 250º F | 932º F | 0.3 | 1 | 120 |
* with minimal leakage.
Specifications
Mounting..................................................Horizontal / Vertical
Leads..........................................................20 Gauge, 12" long
Heater Body......................................................Stainless Steel
Air Entryway Fitting..........................................Stainless Steel
Inlet Fitting................................................10/32 - UNF Thread
Exhaust Fitting...................................................NF - No Fitting
Wattage and Voltage Options
120V, single phase 50W-250W
208V, single phase, 100W-250W
240V, single phase, 100W-300W
Applications
- Melting
- Cutting
- Adhesive Activation
- De-soldering
- Heat Staking
- Sterilization
Resources
Additional Information
Exhaust Fitting. No Fitting
Inlet Fitting. M6 Thread
Inlet Fitting. 10-32 UNF
Frequently Asked Questions
The heater is built with all stainless-steel components, UL-listed materials, and rugged construction. It is engineered for long service life in benchtop systems, test fixtures, OEM equipment, and continuous industrial operation.
While the heater can operate on basic power sources, TUTCO Farnam strongly recommends closed-loop temperature control, such as a PID controller with thermocouple feedback, to maintain temperature accuracy and prevent overheating.
Yes. It supports up to 120 PSIG with minimal leakage due to its stainless-steel construction and precision fittings.
It may be mounted horizontally or vertically. However, horizontal mounting is recommended for higher-temperature applications to improve heat dispersion and extend heater life.
The Heat Torch 030 is designed for compressed air or non-combustible gases, including clean dry air, nitrogen, and inert gases. Combustible or reactive gas mixtures must not be used.
