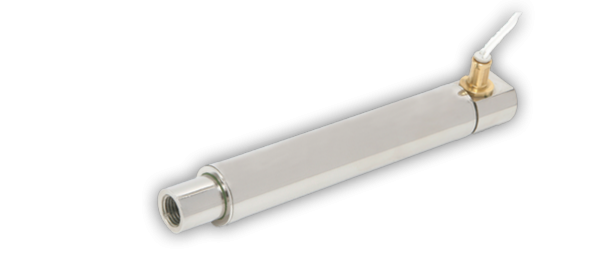

Cool Touch™ 050
The Cool Touch™ 050 features a triple-pass construction that minimizes skin temperatures on the heater. The high-efficiency design focuses the heat where it’s needed, protecting people and products from unnecessarily hot surfaces. The triple-pass design offers superior performance in heat cycling applications due to its high internal thermal storage capacity. Outlet temperature quickly stabilizes when power is applied and regulation is easily maintained.
Our Cool Touch™ 050 is a 1” diameter heater that can provide up to 500 watts and handle up to 7.5 SCFM of air. Outlet temperatures up to 1300 °F can be supplied for your heating requirements.
| MAX WATT | MAX INLET | MAX EXHAUST | MIN SCFM | MAX SCFM | PSIG* |
| 500 W | 250º F | 1300º F | 1 | 10 | 120 |
* with minimal leakage.
Specifications
Mounting.................................................Horizontal / Vertical
Leads.........................................................20 Gauge, 12" long
Heater Body.....................................................Stainless Steel
Inlet Fitting......................................................Stainless Steel
Exhaust Fitting................................................Stainless Steel
Wattage and Voltage Options
120V, single phase, 0.1kW-0.5kW
240V, single phase, 0.2kW-0.6kW
Applications
- Staking
- Curing
- Adhesive Activation
- Drying
- Heat Staking
- Sterilization
Options
- Thermocouple Fitting
- Thermocouple
- Flexible Conduit
Resources
Additional Information
Exhaust Fitting. R1/4=1/4-19 BSPT female
Inlet Fitting. R1/8=1/8-28 BSPT female
Frequently Asked Questions
The airflow passes over internal components three times, maximizing heat transfer and reducing radiant and convective losses. More of the generated heat reaches the process, improving energy efficiency compared to traditional single-pass heaters.
Yes. The reduced external temperature makes it ideal for benchtop tools, manual workstations, handheld devices, and operator-adjacent automated systems.
Thanks to the triple-pass design, the exterior stays significantly cooler than a conventional single-pass heater operating at the same output temperature. While the surface may warm, it is substantially safer to touch and reduces the need for external shielding.
The Cool Touch™ 050 uses a triple-pass airflow design that pre-cools the outer shell, dramatically lowering surface temperature while maintaining high exhaust heat. This enhances operator safety and simplifies integration into compact equipment.
