Silicone Rubber Enclosure Heaters

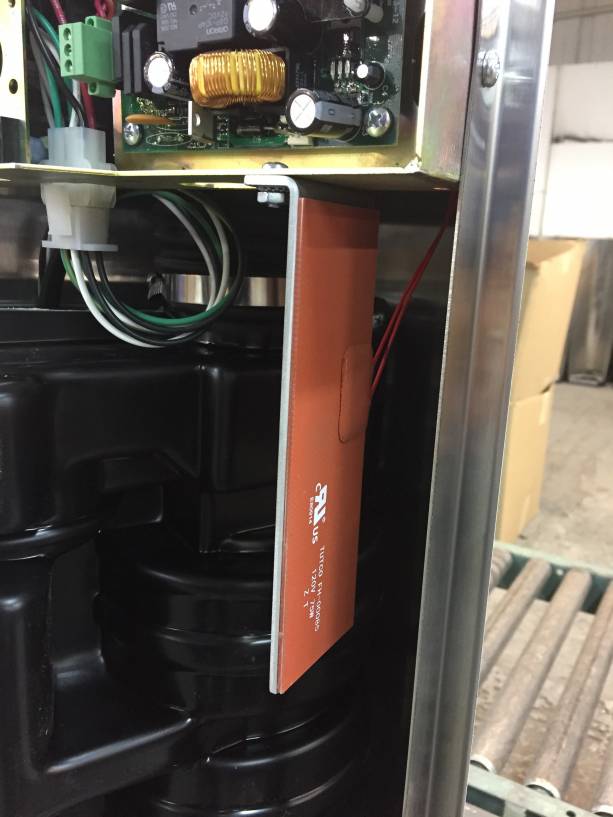

When outdoor cabinets and enclosures face cold temperatures, the electronics and mechanical systems inside can accumulate moisture, leading to degradation and potential failure. Tutco-Farnam's silicone rubber enclosure heaters provide an effective solution with their rapid heat-up capabilities and excellent heat transfer. These durable heaters are compact, easy to install, and come equipped with lead wires and thermal control options to meet your specific needs.
Try our Enclosure Heater Calculator to determine how many watts you will need.
Product Features:
- Rapid heating
- Thermal control
- Rugged design
- Narrow size
- Excellent heat transfer
- Leadwires attached
Applications include:
- Car Wash Kiosk
- Outdoor control panels
- Highway Traffic Signs
- Alarm Systems
- ATMs
- Fast Food Kiosk & Signage
- Indicator Panels
Additional Information
Product Specs
| Photo | Product | Watts | Volts | Length | Height | Bracket | |
|---|---|---|---|---|---|---|---|
| SHF0300-120-0100 |
|
300W | 120V | 10.5" | 3.72" | Yes | |

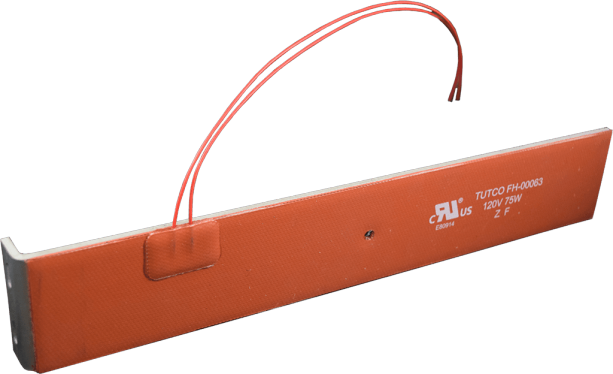

| SHF0075-120-0101 |
|
75W | 120V | 12.05" | 2" | Yes | |
| SHF0075-120-0103 |
|
75W | 120V | 6.17" | 2" | Yes | |

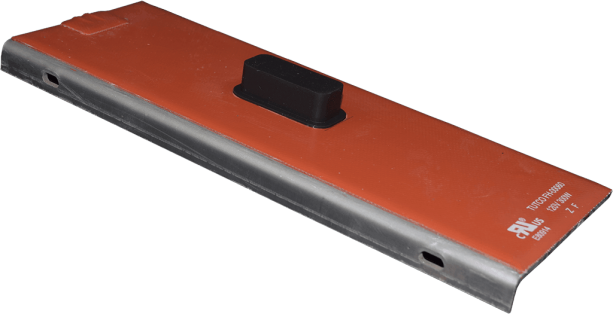

| SHF0300-120-0103 |
|
300W | 120V | 10.5" | 3.48" | No |
Installation
- Pressure-sensitive adhesive (PSA)
- Epoxy and cement
- Clamping
- Factory vulcanization and lamination
Terminations
- Lead wires
- Solder Pads
- Connectors
- Flex Circuits
Sensors
- Surface Mount RTDs and Thermistors
- Thin-film RTDs
- Strip-wound RTD
- Flat-wound RTD
- Etched RTD
- Thermistor
- Thermocouple
- Thermostat
Safety Warnings
- DO NOT handle heater while it is operational
- DO NOT use in the presence, or possible presence, of combustible or flammable materials
- DO NOT bybass thermostat. Doing so will decrease unit life and pose a possible electrical hazard.
- DO NOT exceed rated heater voltage
- ALWAYS disconnect the heater from power source, and allow to cool, before removing from enclosure unit.
- In order to comply with UL508A the heater needs to be mounted 2 inches or more from polymeric insulating materials of components and wiring, other than the internal wiring connected to the heater.
Product Fittings
