Industrial Control Panels
Custom Control Solutions Tailored to Your Application

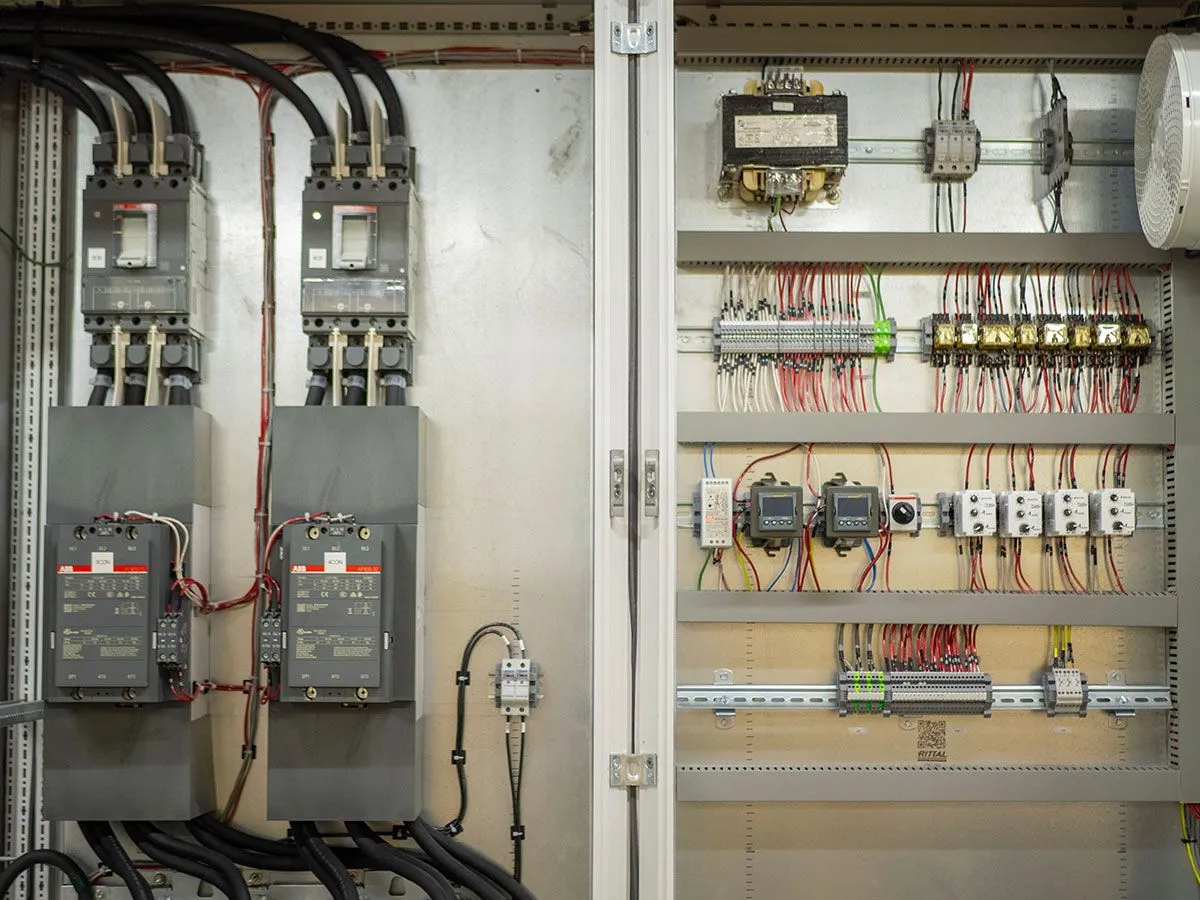

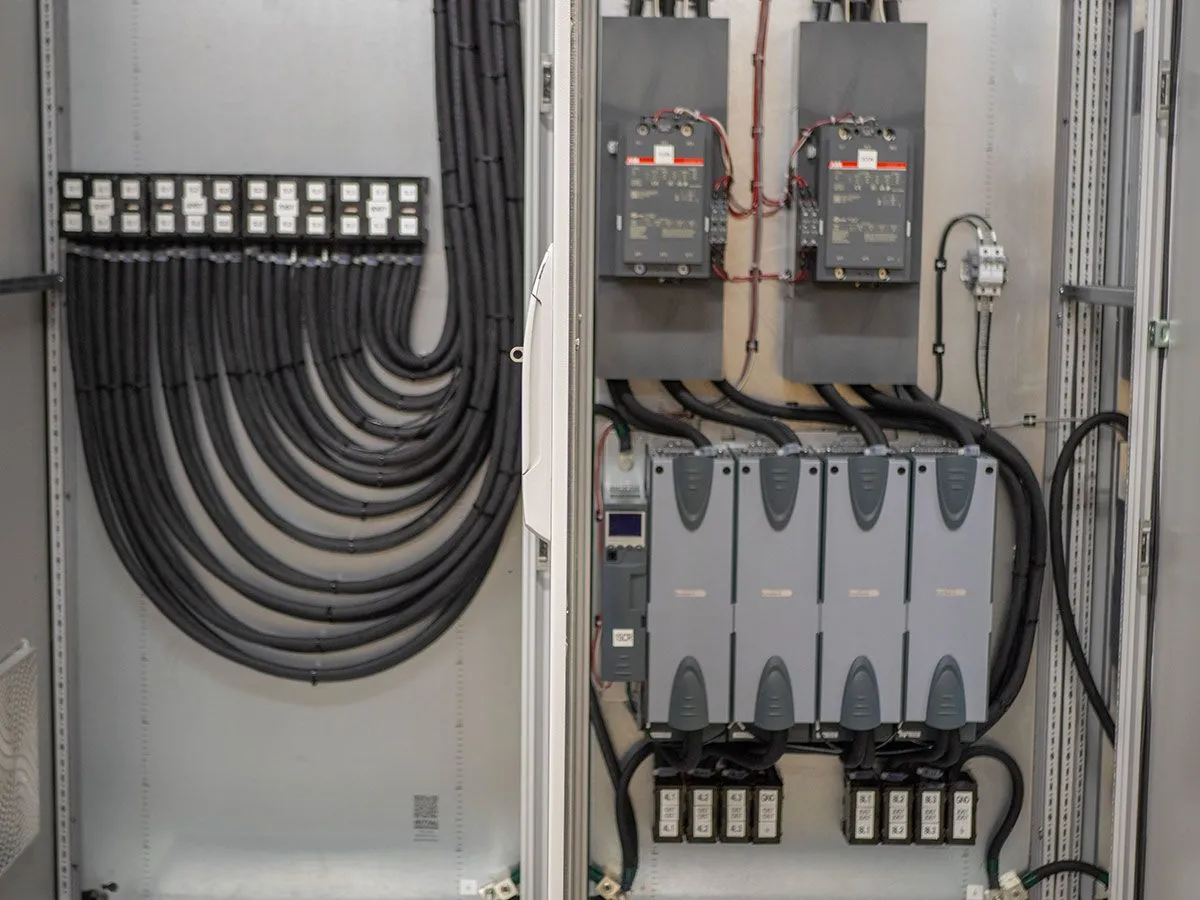

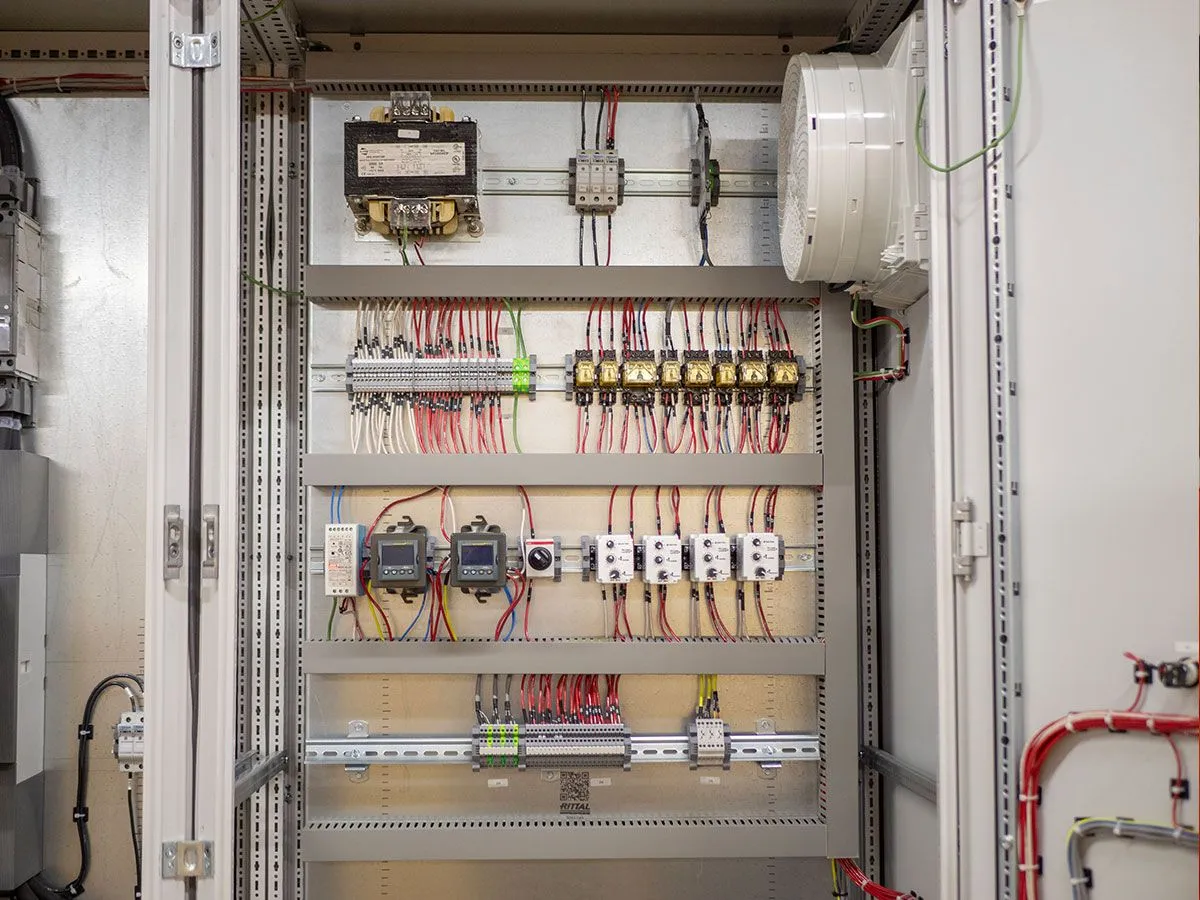

TUTCO produces Industrial Control Panels that are UL 508A listed and meticulously designed to meet your application’s needs. A custom panel will provide safe, precise, and reliable control tailored to the critical needs of specific applications. Our extensive expertise in industrial control systems begins with process heat and extends into multiple other systems which uniquely qualifies us to manufacture custom control panels to regulate your heater and other devices in the systems to fit your needs. Every detail, including operating environments, installation requirements, heating and electrical needs, sizing, and integration with existing control equipment, are addressed to produce the ideal custom control panel.
Industries and Applications for our Control Panels
- HVAC
- Network and Data Centers
- Semi-Conductors
- Electric Heat Controls
- Agricultural Controls
- Aquatic Playground Controls
- Fountain Controls
- Waste Water Controls
- Operator Consoles
- Alternative Energy
- Charging Infrastructure
- Wind Technology
- Decarbonization Process Controls
- Industrial Machinery Controls
- Irrigation Equipment Controls
- Dehumidification
- Chiller/Boiler Controls
- Amusement Ride Controls
- Environmental Control
- Poultry Farming Controls
- Light Duty Lighting - Parking Lot Controls
- Crane Controls
- Flame Control
- Industrial Refrigeration Equipment Controls
- Water Park and Amusement Ride Controls
- Power Factor Correction
Control Panels for Every Application

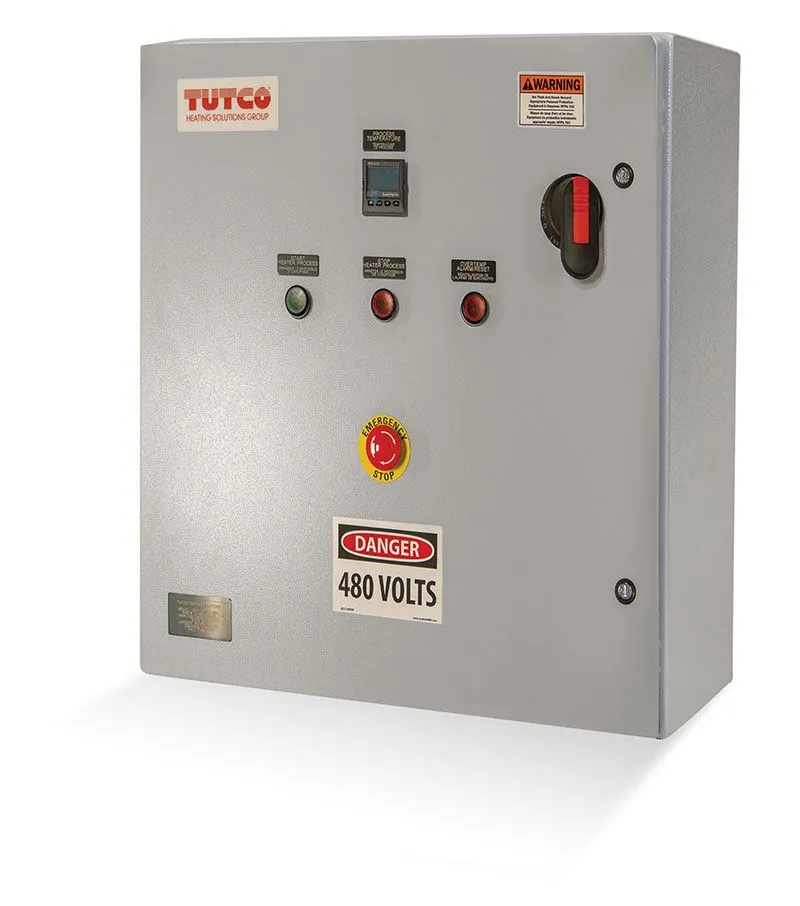

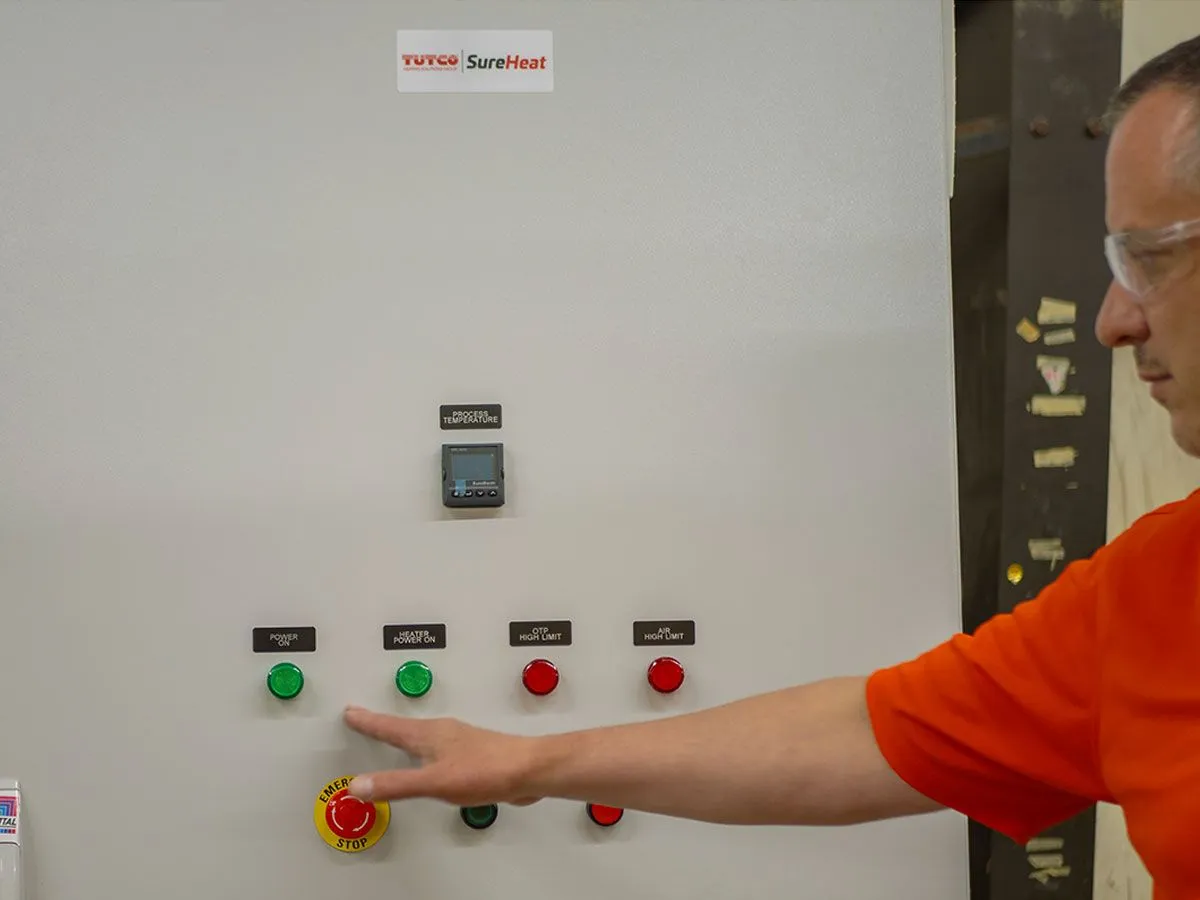

TUTCO Industrial Control Panels are designed for easy implementation across a wide range of applications. Every detail, including operating environments, installation requirements, heating and electrical needs, sizing, and integration with existing control equipment, will be considered when exploring your need for a custom panel. The front of the panel may vary per need but our typical Control Panel features three illuminated buttons, a start, stop, and an over-temp alarm button. There is also an integrated e-stop button, all of which provide local control from the front of the unit. The RJ-45 port allows the system to report and remotely integrate into other popular industrial LAN-operated solutions. The Temperature Controller is simple to implement and easy to operate with quick start codes, automatic help text, custom text messages, and auto-tuning. The LAN connection enables the controller to communicate and retrieve data from an external device, such as a data logger or webpage.
Standard Control Panels
TUTCO also offers a line of standard control products
TUTCO's depth of expertise makes us uniquely qualified to produce control panels for the heaters we produce, as reflected in our unwavering commitment to quality. Our engineers have leveraged the latest technology in heater controls and safety features to create a line of controllers well-suited for industrial facilities and OEMs. Our industrial controllers utilize power controllers, temperature controllers, and thermocouples to continuously monitor and maintain consistent output voltages to the heater. Regardless of fluctuations in the process or changes in airflow, the temperature is continually monitored to meet process requirements and safeguard the heater. Each controller features LAN connectivity for effective communication in the most critical applications.
Key Features
- UL508A listed which holds to CSA C22.2 No. 286, RoHS (CE Mark for International upon request)
- Temperature controller offers a LAN connection
- Emergency Stop Button (E-stop) on the front panel
- Local and Remote Start and Stop capabilities
- Custom modifications are available, contact support with your requirements
Products
Single Phase, 15-60 Amp, 24”x24”x10” Control Panel
Available in Voltages VAC 50/60Hz: 120, 200, 208, 240, 277, 380, 400, 415, 460, 480, 575, 600
Main Breaker with Heater; MCB(FLA): 15(12), 20(16), 30(24), 40(32), 50(40), 60(48)
Approximate Weight: 80 lbs
Three Phase, 15-60 Amp, 24”x24”x10” Control Panel
Available in Voltages VAC 50/60Hz: 200, 208, 240, 380, 400, 415, 460, 480, 575Y, 575D, 600Y, 600D
Main Breaker with Heater; MCB(FLA): 15(12), 20(16), 30(24), 40(32), 50(40), 60(48)
Approximate Weight: 80 lbs
Single Phase, 80-125 Amp, 36”x36”x12” Control Panel
Single two-stage heater controlled by single loop
Available in Voltages VAC 50/60Hz: 120, 200, 208, 240, 277, 380, 400, 415, 460, 480, 575, 600
Main Breaker with Heater; MCB(FLA): 80(64), 100(80), 125(96)
Approximate Weight: 100 lbs
Three Phase, 80-125 Amp, 36”x36”x12” Control Panel
Single two-stage heater controlled by single loop
Available in Voltages VAC 50/60Hz: 200, 208, 240, 380, 400, 415, 460, 480, 575Y, 575D, 600Y, 600D
Main Breaker with Heater; MCB(FLA): 80(64), 100(80), 125(96)
Approximate Weight: 100 lbs
