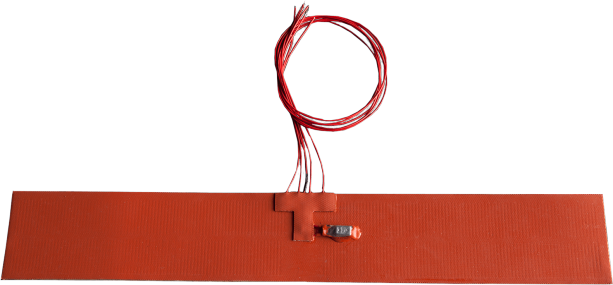

Silicone Rubber Heaters
TUTCO-Farnam silicone rubber heaters are highly customizable industrial heaters that are very durable and offer amazing heat transfer properties. The etched foil heating elements used in TUTCO Farnam's Silicone heaters are designed to maintain uniform temperatures across the heater's surface. Silicone rubber heaters are very flexible and resistant to most chemicals. Silicone heaters are an excellent choice for applications like process heating, condensation control, freeze protection, and composite bonding or curing. They are especially suited for heating irregular shapes and curved surfaces.

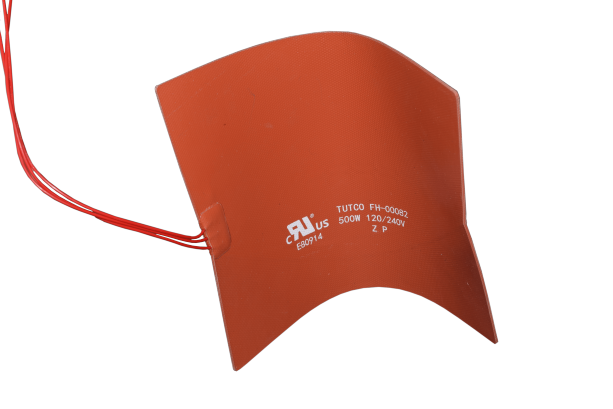

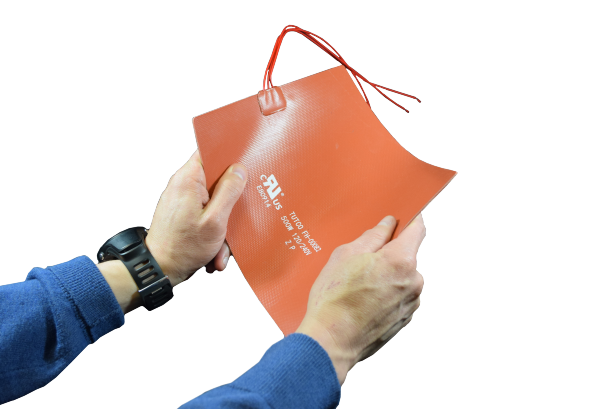

In industrial environments, mechanical vibrations are common. Flexible heaters are built to withstand these challenges—they resist vibrations, mechanical shocks, and repeated movements without issue. Silicone, in particular, is highly durable. It can flex repeatedly without stretching or tearing, making it a reliable and long-lasting solution for demanding applications.

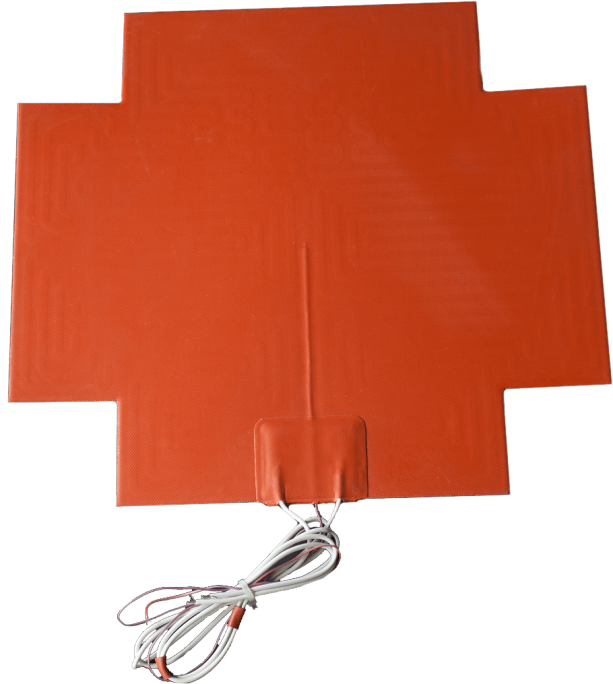

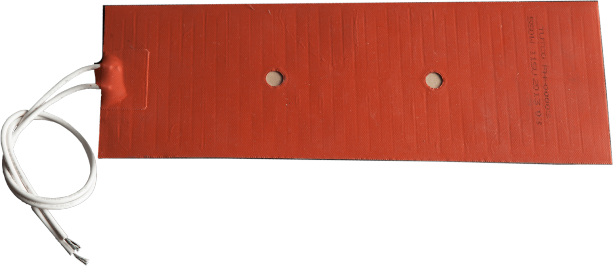

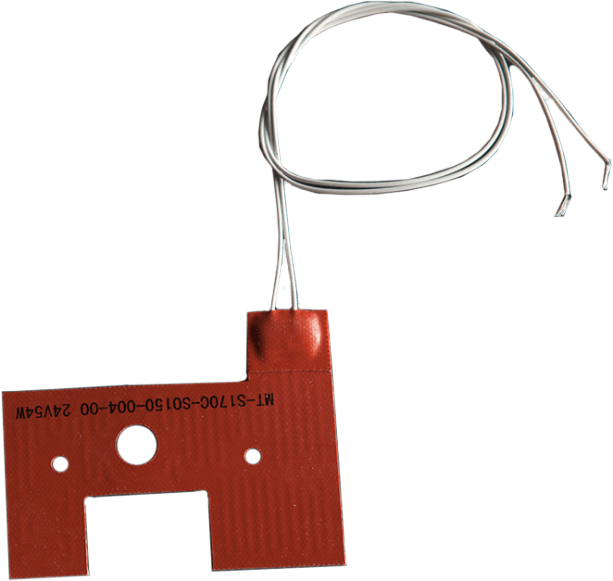

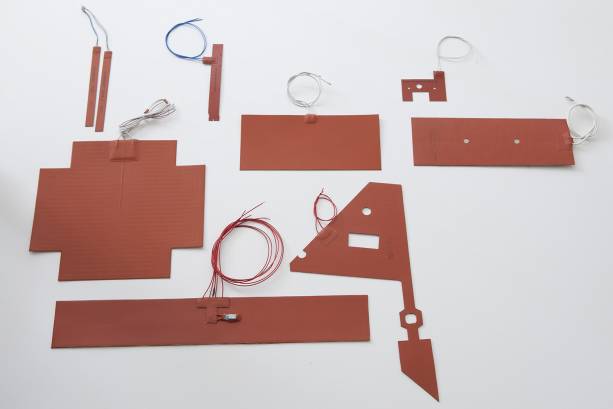

Etch-foiled silicone rubber heaters can be produced in variety of custom shapes and sizes, from as small as a 1” square to 18”x24”. Even larger elements can be produced using wire-bound construction. Silicone heaters are a superior product when weight, durability, precision heat and thermal control are required.
You can build a custom flexible heater with our Flex-Specs tool, view common silicone heater configurations, or call (828-684-3766) to talk about in-stock options.
Silicone rubber heaters require a minimum order of 100 pieces.
Design & spec your flexible heater online in 5 easy steps. Save and revise your configurations and submit them for quoting. Check our Flex Specs Tool to view and configure your heater.
Loading...
Durability
Tutco-Farnam silicone rubber heaters are a good choice for many harsh conditions where vibration, chemical spills and moisture are likely to occur. The rugged silicone rubber body is an excellent electrical insulator as well as having a flammability rating of UL V-O. Structural stability is reinforced with a high-strength fiberglass mesh. Custom heaters designed without woven glass are typically manufactured for specialty applications such as submersion. Attachement options include straps, springs, ties, PSA (pressure sensitive adhesive) and vulcanization.
Control & Distribution
Silicone rubber heaters can apply finely controlled heat directly where it is needed with run after run consistency. Even on complex shapes and irregular sizes. Silicone heaters are quick to ramp up and cool down. Variable watt densities and multi-zoned options give us a high degree of design flexibility. Whether flat, curved or completely custom, flexible silicone heaters are in direct contact with a surface. That direct heat transfer coupled with low mass properties allows for powerful temperature control. We can customize heat distribution wherever it matters most to your application such as the regionalizing of watt density to prevent edgeloss.
Power
From 12VDC to 600VAC we can design your heater to work with your power specs and deliver heat precisely where it is needed. Powerful watt densities up to 30 Watts per sq/inch offer a wide range of possibilities. Dual Voltages (3 and 4 lead wire versions) can be designed for multiple fixed heat settings or even a 120/240 dual use product. We have designed custom heaters for industry specific voltages such as those found in aerospace and ground transportation. If your supply voltage is 3-phase we can design for that too.
From First-Run to Large Orders
Tutco-Farnam flexible heaters are innovative engineered products. Not your typical off-the-shelf items. Tutco-Farnam can work with you to develop an initial low minimum first order run and ramp up to larger production quantities (1k pcs/month, 10k pcs/month or more), all within the same company. The same design engineer and the same UL. Along with many installation, connector and sensor options, Tutco-Farnam can also vulcanize your heater directly to a metal substrate. UL certification is available.
Contact a Tutco-Farnam representative to help you design your next Silicone Rubber Heater.
Case Histories
Case HistoriesRugged silicone rubber heaters provide reliable service in many industrial, chemical and outdoor weather conditions. Read some recent examples.
- Evaporator Heater for Vending Enclosure
- Pneumatic Delivery Enclosure Heater
- Tire Refill Station Heater
Specs
Watt Density up to 30W/in2 (4.65W/cm2) for certain applications
Temperature Range -58 to 428F (-50 to 220C)
Dielectric Strength 1200 Vac
Thickness Range from 0.030 in. (0.762mm) to 0.060 in. (1.524)
Sizes up to 18 in. x 24 in. (457.2 mm x 609.6 mm)
