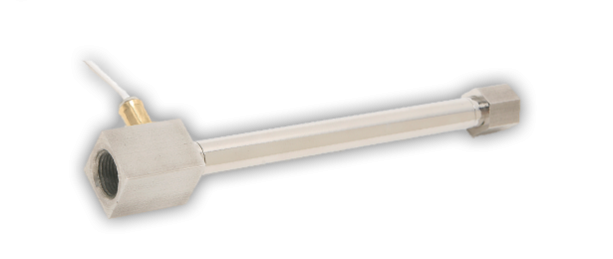

Heat Torch™ 050

This 0.5” diameter Heat Torch™ 050 Heater is compact and reliable when moderate amounts of focused air (or non-combustible gas) are required.

The Heat Torch™ 050 Air Heater has allowable air flow ranging from 1 to 10 SCFM and is available in power ratings of 100 watts to 500 watts (with standard increments of 50 watts). Maximum air input temperature is 250°F (121°C) with 1300°F (704°C) maximum output with a ceramic core, and 932°F (500°C) maximum output with a mica core.

Applications for Heat Torch™ 050 include staking, curing, drying, heat shrinking, sterilization, and adhesive activation.

Get A Quote
Core Max Watt Max Inlet Max Exhaust Min SCFM Max SCFM PSIG*
Ceramic 600 W 250 °F 1300 °F 1 10 120
Mica 600 W 250 °F 932 °F 1 10 120
  • MountingHorizontal / Vertical
  • Leads20 Gauge, 12" long
  • Heater BodyStainless Steel
  • Heater FittingsStainless Steel

Applications:

  • Staking
  • Curing
  • Drying
  • Heat Shrinking
  • Sterilization
  • Adhesive Activation

Build Your Own Build Your Own

The builder below will allow you to select options for a Heat Torch 050.

MY BUILD#:

Series Designation

  • Heat Torch™ 050, Ceramic
  • Heat Torch™ 050, Mica

Wattage

  • 100
  • 150
  • 200
  • 250
  • 300
  • 350
  • 400
  • 450
  • 500

Voltage

  • 100
  • 120
  • 240

Inlet Fitting

  • Counterbore 1/2" female
  • 1/8" NPT female
  • 3/8" NPT female
  • R1/8 = 1/8-28 BSPT female

Exhaust Fitting

  • no fitting
  • 1/8" NPT female
  • 1/4" NPT female
  • R1/4 = 1/4-19 BSPT female

Thermocouple Fitting

  • No Fitting
  • 1 t/c fitting with t/c
  • 2 t/c fittings with 2 t/c
  • 1 t/c fitting without t/c
  • 2 t/c fittings without t/c

? Not sure if this is the right solution for you? Use our Determine Your Heater tool to see which heaters meet your needs.
