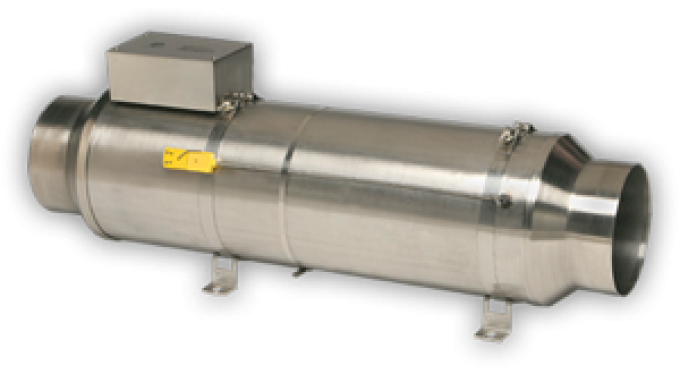

Flow Torches

Flow Torch™ heaters are highly efficient and ideal for heating large airflows. Some of the advantages these process heaters offer are:

  • Minimal obstruction to airflow (low pressure drop)
  • Ideal for low pressure (and economical) blowers
  • Support high volume air flow
  • Heat air up to 482°C (900°F)

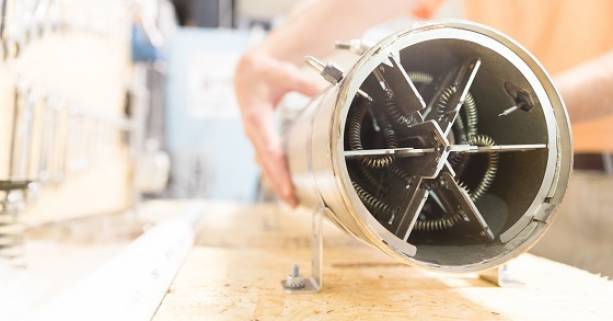

  • Fast heat up and cool down due to low mass open coil design
  • Can be connected to suitable flexible duct or pipe fittings
  • All Flow Torch Heaters are UL recognized components under UL file number E365755.

Farnam has developed several graduated sizes of this basic platform. This family of heaters is offered as a standard product with several options. Farnam offers application assistance so you can best match the heater to your requirements and needs. Control packages are available. Pressure Drop Charts are available for quick comparison.

Get A Quote Build Your Own
Max Watt 6000 W
Max Inlet 250 °F
Max Exhaust 900 °F
Min SCFM 10
Max SCFM 115
PSIG 120
Max Watt 35000 W
Max Inlet 250 °F
Max Exhaust 900 °F
Min SCFM 19
Max SCFM 500
PSIG 3
Max Watt 60000 W
Max Inlet 250 °F
Max Exhaust 900 °F
Min SCFM 38
Max SCFM 1100
PSIG 3

Build Your Own Build Your Own

The builder below will allow you to select options for our Flow Torch air heaters. If you are uncertain if a Flow Torch is the right solution for your needs, please learn about our other product offerings on our Standard Products page.

MY BUILD#:

Series Designation

  • Flow Torch™ 200
  • Flow Torch™ 400
  • Flow Torch™ 600
  • Flow Torch™ 800

Wattage

  • 1000
  • 1500
  • 2000
  • 2500
  • 3000
  • 3500
  • 4000
  • 4500
  • 5000
  • 6000
  • 7000
  • 7500
  • 8000
  • 9000
  • 10000
  • 11000
  • 12000
  • 13000
  • 14000
  • 15000
  • 16000
  • 17000
  • 18000
  • 19000
  • 20000
  • 21000
  • 22000
  • 23000
  • 24000
  • 25000
  • 26000
  • 27000
  • 28000
  • 29000
  • 30000
  • 31000
  • 32000
  • 33000
  • 34000
  • 35000
  • 36000
  • 37000
  • 38000
  • 39000
  • 40000
  • 41000
  • 42000
  • 43000
  • 44000
  • 45000
  • 46000
  • 47000
  • 48000
  • 49000
  • 50000
  • 51000
  • 52000
  • 53000
  • 54000
  • 55000
  • 56000
  • 57000
  • 58000
  • 59000
  • 60000
  • 61000
  • 62000
  • 63000
  • 64000
  • 65000
  • 66000
  • 67000
  • 68000
  • 69000
  • 70000
  • 71000
  • 72000
  • 73000
  • 74000
  • 75000

Voltage

  • 120
  • 208
  • 230
  • 240
  • 380
  • 415
  • 480
  • 575

Phase

  • single
  • three

Inlet Fitting

  • no fitting
  • 1 1/4" NPT female
  • 2" NPT female
  • 3" diameter tube
  • 4" diameter tube
  • 6" diameter tube

Exhaust Fitting

  • no fitting
  • 1 1/4" NPT female
  • 2" NPT female
  • 3" diameter tube
  • 4" diameter tube
  • 6" diameter tube

Thermocouple Fitting

  • no t/c fitting
  • fitting with 1 t/c
  • fitting with 2 t/c
  • 1 t/c fitting without t/c
  • 2 t/c fittings without t/c

? Not sure if this is the right solution for you? Use our Determine Your Heater tool to see which heaters meet your needs.
